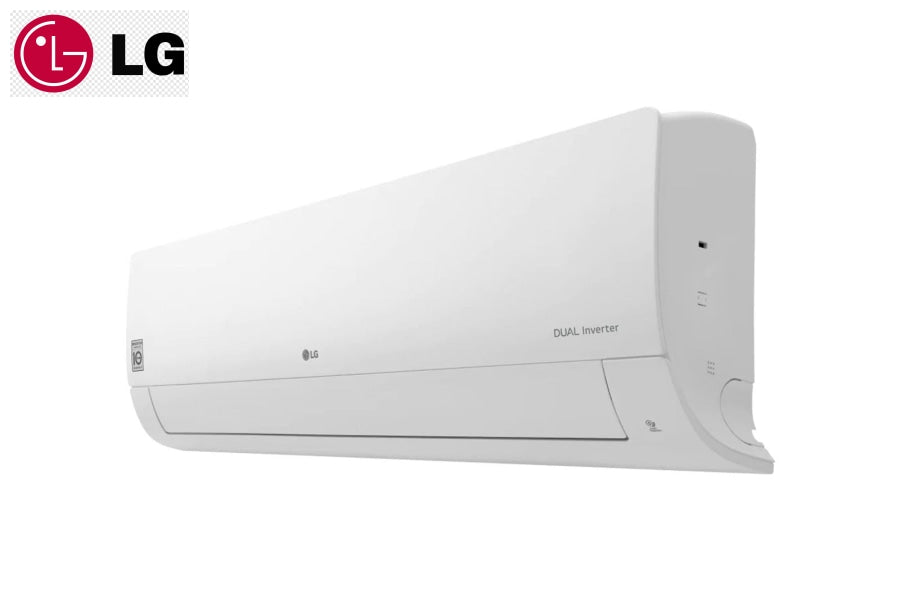

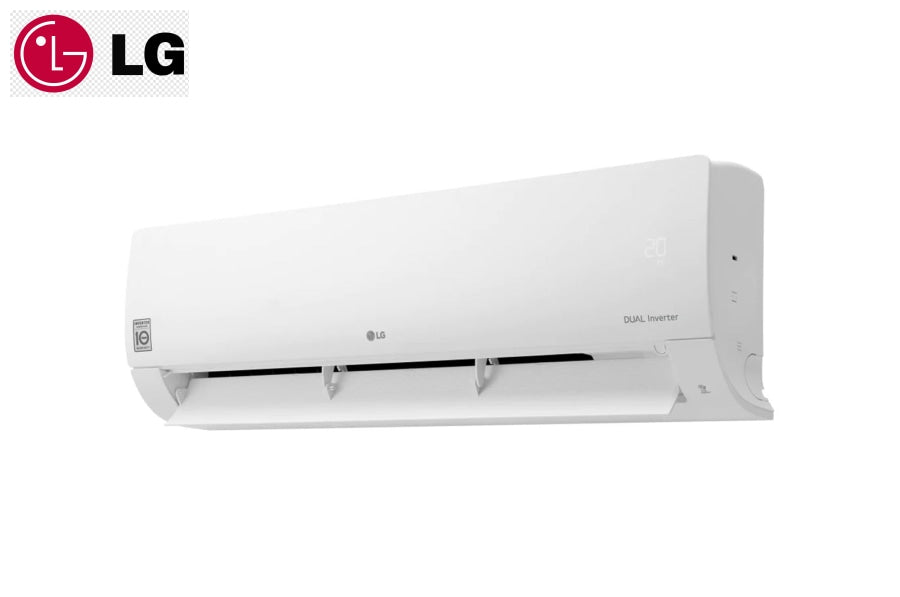

LG 1.5HP Dual Inverter WiFi Air Conditioner (HS-12ISY)
Dual Inverter Compressor™ With 10 Year Warranty
LG's Dual Inverter CompressorTM solves improper, ineffective and noisy problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter.
With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
Energy Saving
Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor
Fast Cooling
LG air conditioner begins cooling the air fast using its high speed cooling range with Dual Inverter Compressor™, so it expels air farther and cool spaces faster.
ThinQ™ (Wi-Fi)
Monitor operational status and Easily Control an air conditioner's functions at anytime / anywhere with Wi-Fi connection.
Low Noise
LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.
Simple and Slim Design with Hidden Display
LG air conditioner‘s slim and modern design makes easy installation and convenient cleaning with EZ sliding filter.
*The actual product image may differ from the image shown above.
Quick and Easy Installation
LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.
Dual Inverter Compressor™
10 Year Warranty
Sleep Mode
Sleep Mode will increase the temperature by a degree every 30 minutes, and eventually by 2 degrees per hour to create a more comfortable and sound sleeping atmosphere.
Gold Fin™
The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.
DIMENSIONS
SUMMARY
-
- CAPACITY
- 1.5HP
-
- DIMENSIONS NET W X H X D (MM) INDOOR / OUTDOOR
- 837 x 308 x 189
717 x 495 x 230
-
- MAIN TECHNOLOGY
- Dual Inverter
-
- ADDITIONAL BENEFIT
- Active Energy Control
CAPACITY
-
- Cooling (Min ~ Rated ~ Max)
- 3.52 kW
12,000 Btu/h
12,660 kJ/h
- Capacity
- 1.5HP
POWER INPUT
-
- Cooling (Min ~ Rated ~ Max)
- 1,030 W
RUNNING CURRENT
-
- Cooling (Min ~ Rated ~ Max)
- 5.90 A
EER
-
- EER
- 3.41 W/W
11.65 (Btu/h)/W
12.29 (kJ/h)/W
POWER SUPPLY
-
- Power Supply
- 1, 230, 60 (Ø, V, Hz)
- Available Voltage Range
- 187 ~ 276 V
-
- Power Factor - Cooling
- 93%
- Moisture Removal
- 1.25 l/h
2.64 pts/h
-
- Circuit Breaker
- 15 A
- Power Supply Cable
- 3 × 1 No. × mm²
-
- Power Supply to Unit
- Indoor
- Power and Communication Cable
- 4 × 1 No. × mm²
INDOOR UNIT
-
- Air Flow Rate - Cooling, Max/H/M/L
- 13/10/6.6/4.2 m³/min
459/353/233/148 CFM
- Fan Motor Speed - Cooling, Max/H/HM/M/ML/L/SL
- 1650/1250/1140/1030/840/650/480 rpm
-
- Sound Pressure Level - Cooling, Max/H/M/L/SL
- -/41/35/27/21 dB(A)
- Dimensions (W × H × D) - Net
- 837 x 308 x 189 mm
-
- Dimensions (W × H × D) - Shipping
- 897 x 390 x 254 mm
- Weight - Net
- 8.7kg
-
- Weight - Shipping
- 10.5kg
- Disconnect Switch
- 15 A
-
- Exterior Color Code
- Munsell 7.5BG 10/2 (RAL 9016)
- Operation Range - Cooling
- 16 ~ 32 °C DB
61 ~ 90 °F DB
10 ~ 23 °C WB
50 ~ 73.4 °F WB
OUTDOOR UNIT
-
- Air Flow Rate - Max
- 28.0 m³/min
989 CFM
- Sound Pressure Level - Cooling, Rated
- 50 dB(A)
-
- Dimensions (W × H × D) - Net
- 717 x 495 x 230 mm
- Dimensions (W × H × D) - Shipping
- 839 x 532 x 324 mm
-
- Weight - Net
- 23.0kg
- Weight - Shipping
- 24.7kg
-
- Max. Fuse Size
- 15 A
- Exterior Color Code
- Munsell 9.54Y 8.34/1.31 (RAL 9001)
-
- Operation Range - Cooling
- 18 ~ 48 °C DB
PIPING
-
- Size - Liquid
- ø 6.35 mm
- Size - Gas
- ø 9.52 mm
-
- Connections Method - Indoor/Outdoor
- Flared/Flared
- Drain Hose Size - O.D, I.D
- 21.5, 16.0 mm
-
- Max Piping Length Capacity
- 98%
BETWEEN INDOOR & OUTDOOR
-
- Piping Length - Min/Standard/Max
- 3/7.5/20 m
- Piping Length - No Charge
- 12.5 m
-
- Max. Elevation Difference
- 15m
- Piping Connection Heat Insulation
- Both liquid and gas pipes
REFRIGERANT
-
- Type
- R32
- Pre Charge
- 570g
-
- Additional Charge
- 15g/m
- Control
- Capillary
-
- Global Warning Potential
- 675
- t-CO₂ eq
- 0.385
TOOL CODE(CHASSIS)
-
- Indoor / Outdoor
- SJ / UA3
COMPRESSOR
-
- Type
- Twin Rotary
- Model
- DST102MAA
-
- Motor Type
- BLDC
- Oil Type / Maker
- PVE (FW68D) / IDEMITSU
-
- Oil Charge
- 280cc
- Manufacturer / Country of Origin
- LG Electronics / China
FAN(INDOOR)
-
- Type
- Cross Flow Fan
- Motor Output
- 30W
FAN(OUTDOOR)
-
- Type
- Propeller Fan
- Motor Type
- AC
-
- Motor Output
- 25W
- Motor Insulation
- Class B
-
- Motor Enclosure / Ingress Protection
- TEAO/IP44
HEAT EXCHANGER
-
- Evaporator - Material, Tube / Fin
- Cu/Al
- Evaporator - (ø x Row x Column x FPI x L) x Qty.
- (ø7 x 2 x 15 x 21 x 616.8) x 1
-
- Evaporator - Corrosion Protection
- PCM
- Evaporator - Fin Type
- Slit
-
- Condenser - Material, Tube / Fin
- Cu/Al
- Condenser - (ø x Row x Column x FPI x L) x Qty.
- (ø5 x 2 x 22 x 21 x 686) x 1
-
- Condenser - Corrosion Protection
- Gold
- Condenser - Fin Type
- Louver
